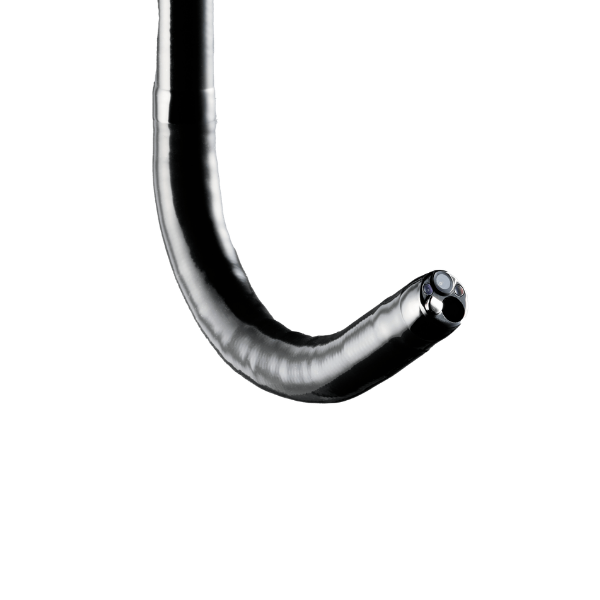

ELUXEO™ Video Gastroscope EG-840N UltraSlim Type

The FUJIFILM EG-840N is an ultra-slim video gastroscope from the ELUXEO 800 Series, designed for observation, diagnosis and endoscopic treatment of the upper digestive tract. It features a high-sensitivity CMOS sensor and a 140° field of view, supporting clear wide-angle visualization across an observation range of 2–100 mm. With a 5.8 mm distal end and 5.9 mm insertion tube, the EG-840N is designed for a slim profile and can be used for both oral and nasal insertion. Its 2.4 mm instrument channel supports compatible endoscopic accessories, while the scope provides 210° up and 90° down angulation, with 100° right and left movement. The EG-840N has a 1,100 mm working length and 1,400 mm total length.

Description

Features

ELUXEO 800 Series gastroscope
High-sensitivity CMOS sensor
140° field of view
2–100 mm observation range
5.8 mm distal end diameter
2.4 mm instrument channel
1,100 mm working length
210° up / 90° down angulation

Benefits

Wide-angle upper GI visualization
Slim design for flexible insertion
Suitable for oral or nasal insertion
Supports diagnostic procedures
Supports endoscopic treatment
Flexible scope manoeuvrability
Suitable for narrow anatomies
Compatible with ELUXEO 800 Series imaging technology
