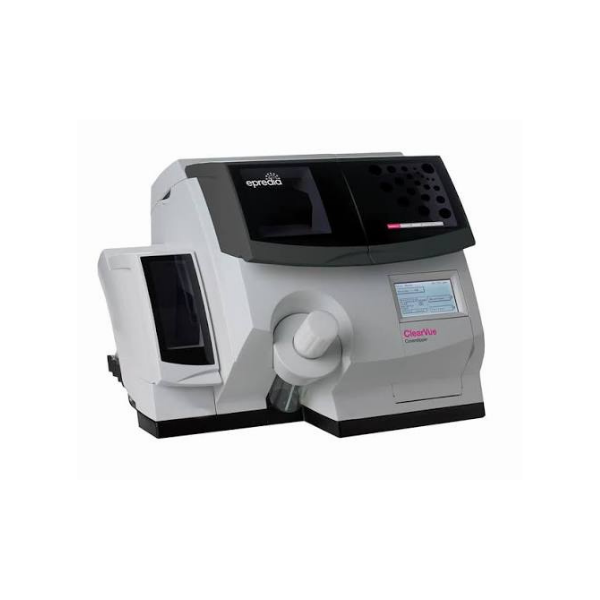

Shandon Clearvue Coverslipper

Boost speed and accuracy in busy laboratories by automating the coverslipping workload with the Shandon ClearVue Coverslipper.

Simply place a basket of slides onto the load rail and close the door — the Shandon ClearVue Coverslipper does all the rest.

Compatibility

Offers compatibility with a variety of stainers to accommodate just about any lab setting.
Accepts slides directly from the Thermo Scientific Varistain Gemini ES and Varistain 24-4, Sakura DRS2000 and Leica Auto-Stainer.
Permits loading of slide baskets from any of these stainers in a mix-or-match fashion without requiring operator adjustments to the Coverslipper.

Specimen Recognition

Automatically recognizes different types of slide preparations and delivers the correct amount of mountant for coverslipping each slide.
Handles both histology and cytology samples simultaneously without user interaction while still delivering right amount of mountant.

Load-on-Demand

Handles up to 11 slide baskets at the same time with load-on-demand capabilities.
Accepts baskets loaded one at a time or up to five baskets loaded together.
Optical Recognition.
Possesses the unique ability to optically recognize and position slides during the coverslipping process.
Recognizes the position of each slide in a basket, removes each slide with a set of slide-grippers and returns every slide back, while maintaining slide positioning.

User Interface

Interface Intuitive user interface features a touchscreen panel Software monitors the type of slide preparation, size, and number of slips dispensed and the number of baskets waiting to be coverslipped.

Safety Features

System is not operational when any of its doors are open, preventing mechanical mishaps.
Downdraft ventilation protects the user when loading and unloading slide baskets.
Charcoal filter removes any vapours before they can escape the unit.
Removable debris and purge trays make clean-up a breeze.

Physical Specifications

Dimensions (D x W x H): 22.75 x 25.5 x 19.75 in. (57.5 x 64.5 x 50cm).
Weight: 110 lb.
Power Requirements: 100-240VAC, 50/60Hz.
